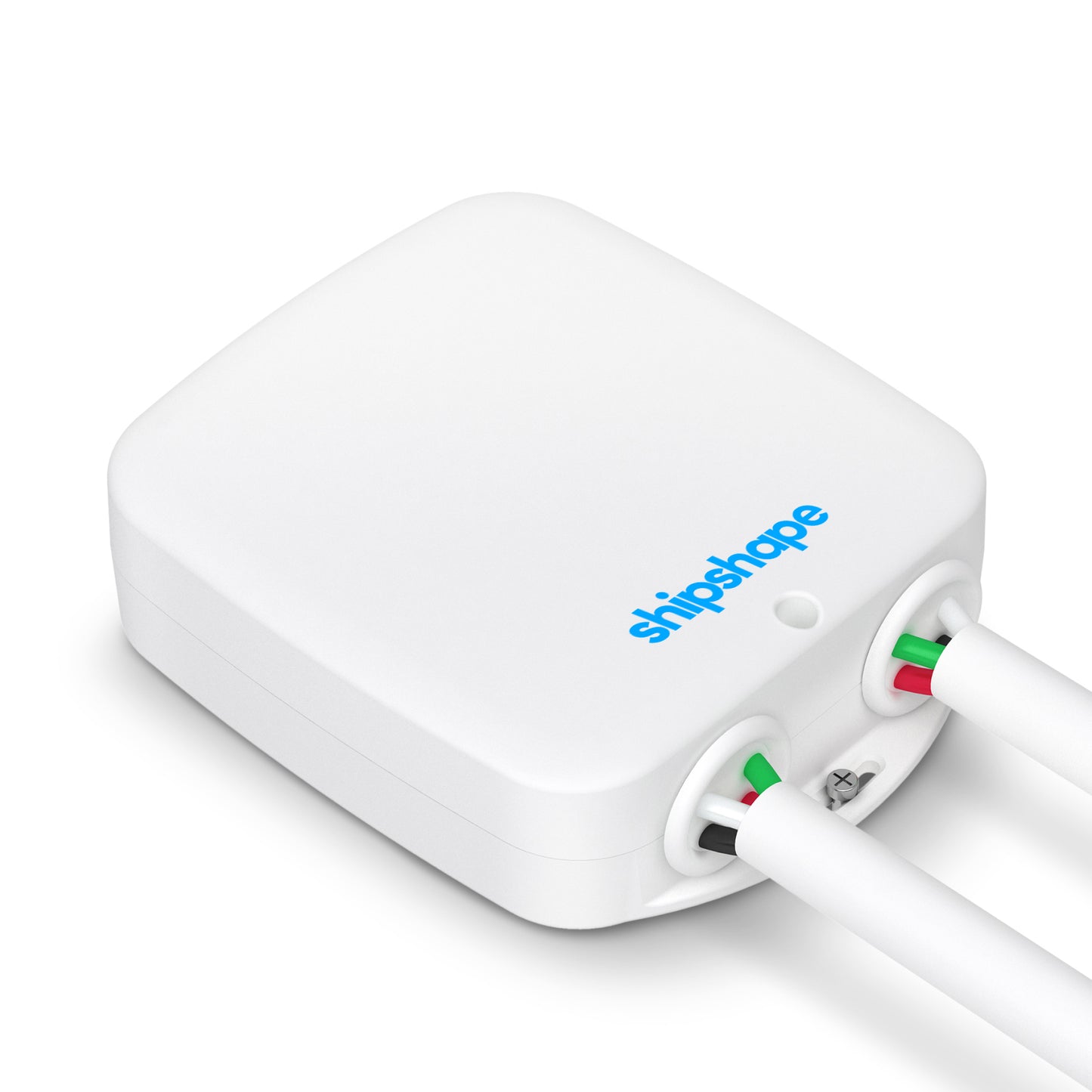

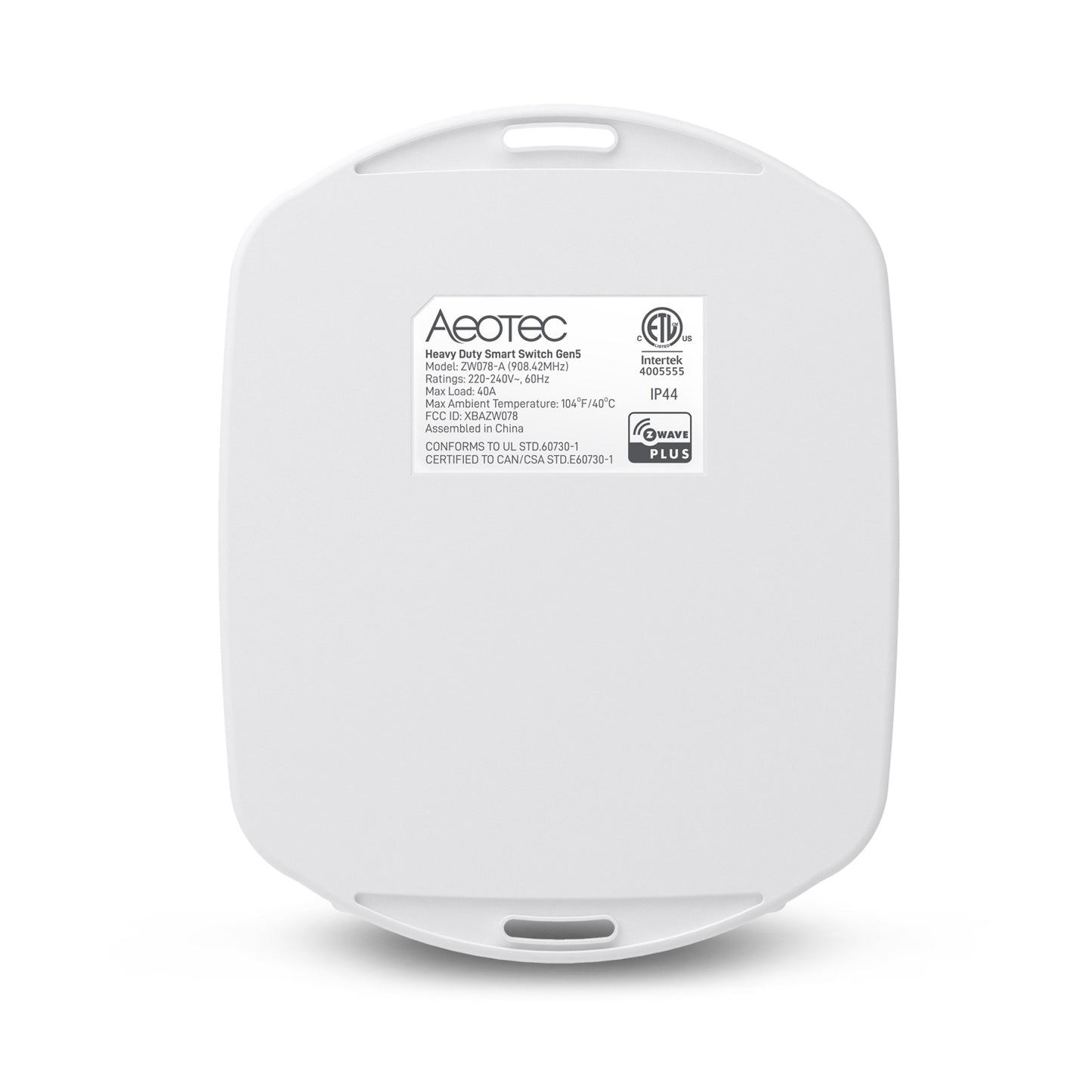

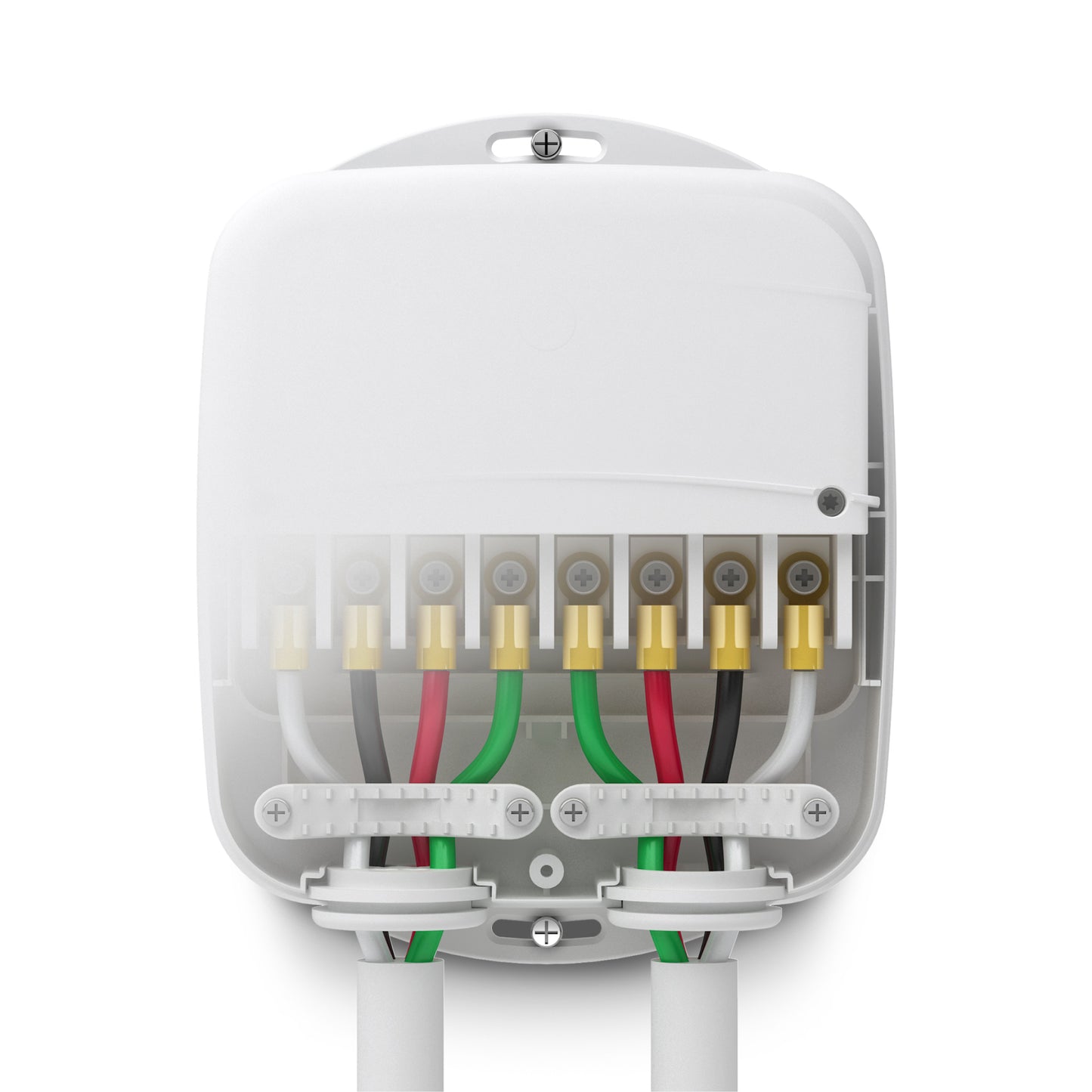

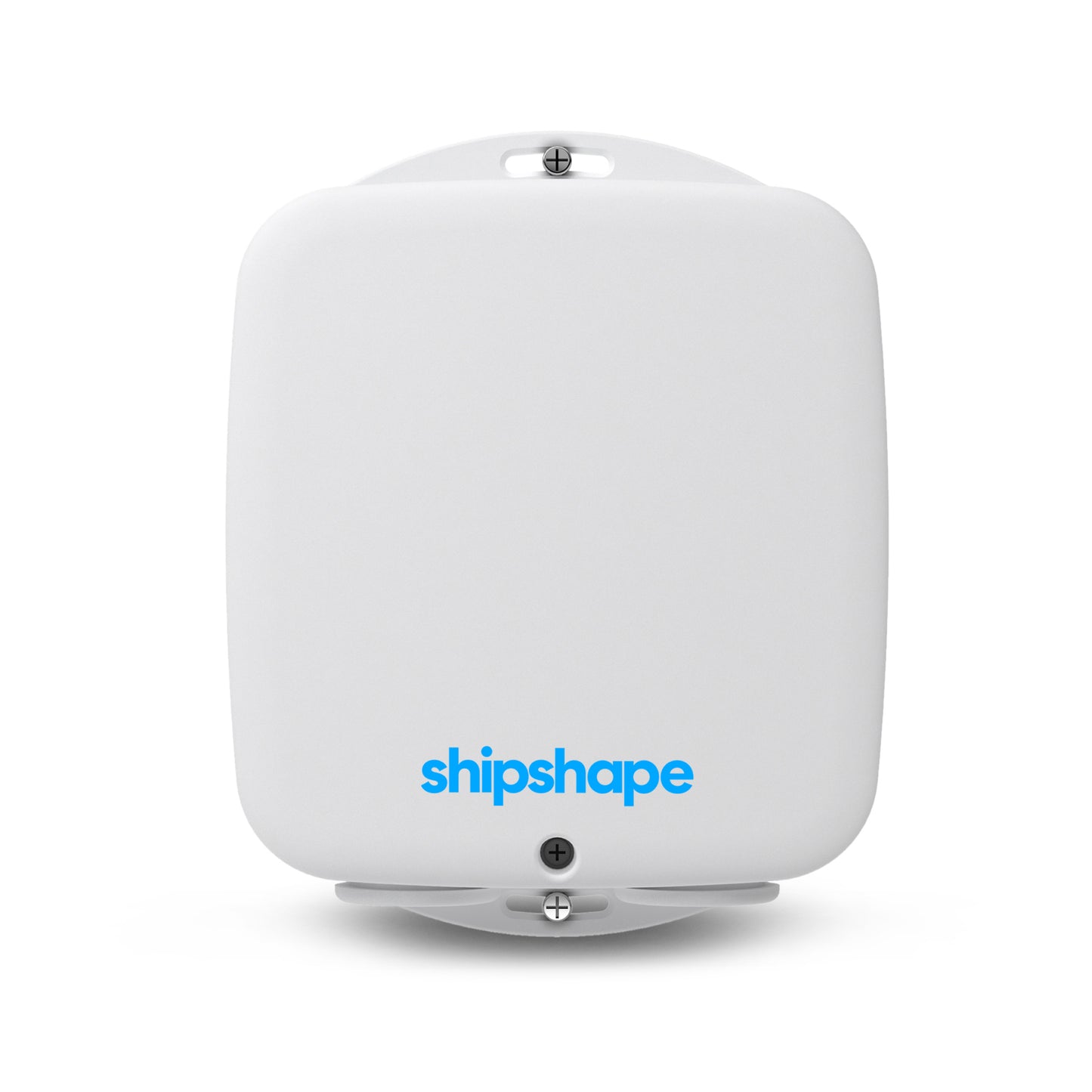

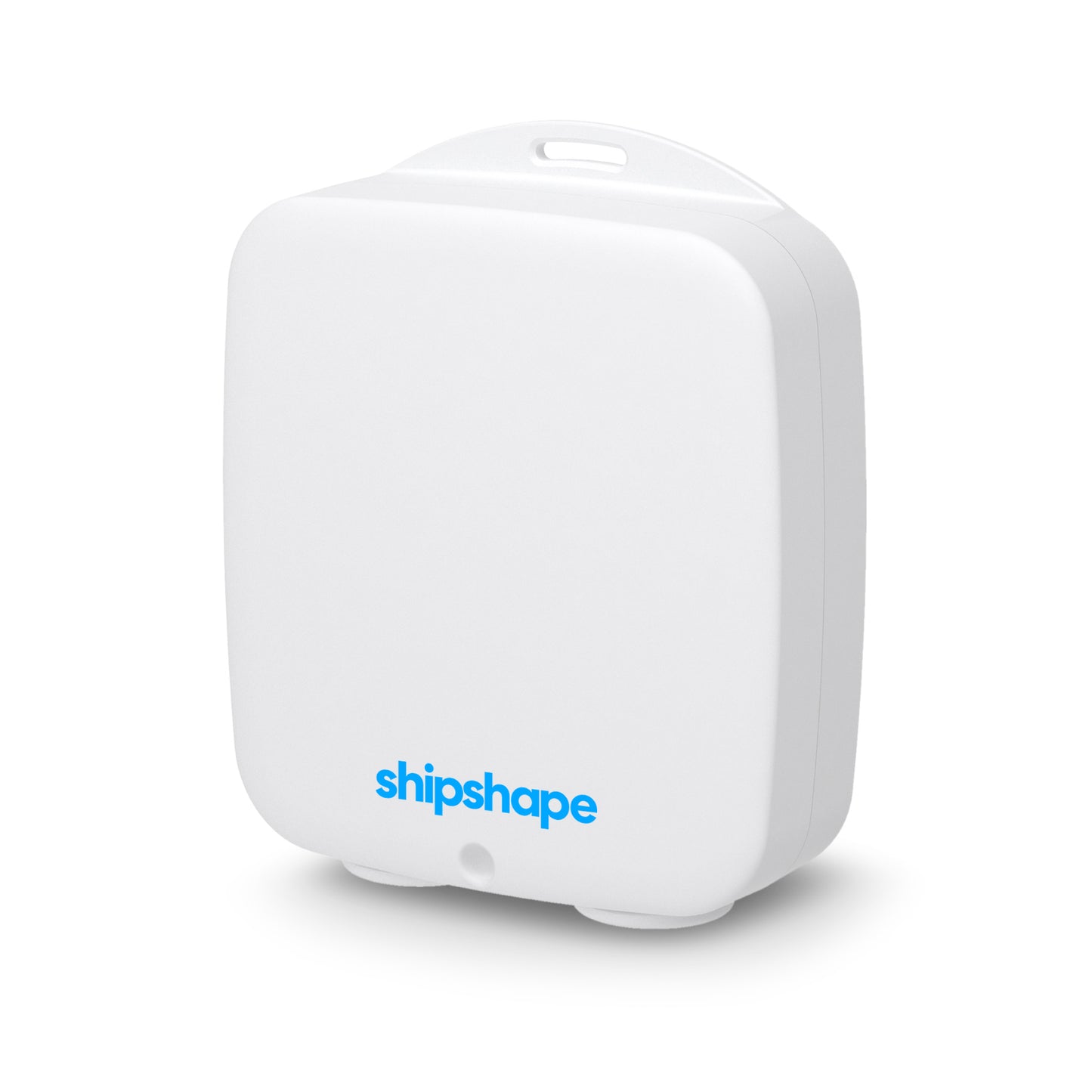

Heavy Duty Switch

The Heavy Duty Switch utilizes advanced smart switch technology to offer comprehensive control and monitoring for high-powered appliances. This switch enables wireless and remote management through Z-Wave compatible gateways, apps, and remotes, providing both manual and automated operation.


Key Features:

Wireless Control: Manage and monitor connected devices remotely via Z-Wave controllers and apps.
Automated Operation: Schedule heavy-duty appliances to operate only when necessary, optimizing usage and efficiency.
Real-Time Energy Monitoring: Accurately track power consumption in watts and kilowatt-hours, providing insights to help control costs.
Emergency Shutdown: Allows immediate remote shutoff in emergencies, protecting your devices and home from potential damage.
Indoor and Outdoor Reliability: Built to withstand outdoor conditions with a waterproof rating of IP44, a long-range antenna (up to 150 meters outdoor range), and integrated repeater functionality to extend Z-Wave network coverage.

Technical Specifications:
Energy Measurement Function: Yes
Waterproof Rating: IP44
Z-Wave Gen5 Technology
Repeater Functionality: Yes
Beaming Capability: Yes
Power Consumption: 1W

Electrical Ratings:
US (2-phase split): 240VAC, 50/60Hz; Maximum 9600W (40A Resistor), 240VAC 5HP AC Motor
US (single-phase): 120VAC, 50/60Hz; Maximum 4800W (40A Resistor), 120VAC 5HP AC Motor

Additional Information:

Minimum energy sensor reading: 2W
RF range: 500ft/150m outdoors
Peak current endurance: 1440 (10ms period)
Suitable for indoor and outdoor environments
Maximum operational altitude: 2000m
Operational temperature range: 5°C to 40°C
Maximum relative humidity: 80%
Pollution degree: 2
Product Dimensions: 5.9 x 4.7 x 1.6 inches (150 x 119 x 41 mm)
